SERVES YOU WHEREVER YOU SERVE

Configurations for all types of missions
The HD9 rigid version is the ideal vehicle for transporting materials, goods and people in off-road conditions, on arduous and rough terrain. Available in 2, 3 and 4-axle versions, it has a GVW up to 65 tons depending on the configuration. The HD9 rigid version is designed to be easily set up in numerous different configurations, thanks a simple and reliable mechanical-electronic structure. The HD9 rigid version suits any type of equipment: from a tipping body for transporting aggregates from quarries or mines, to construction machines such as concrete mixers, concrete pumps or mixer pumps, platforms and cranes to special configurations like workshop or firefighting vehicles .



PRODUCTIVITY

Cost per ton 30 to 50% lower

Cost per ton 30 to 50% lower compared to a traditional dump truck.

Same 40 ton payload.
Lower purchase costs.
Lower maintenance costs.
Lower fuel consumption.
Lower time cycle.

Loads up to 11 tons

Thanks to reinforced front drive axles and axles for the most arduous off-road use (routes with slopes or heavy loads concentrated on the front of the vehicle).

Reinforced axle (or drive axle)

Loads up to 20 tons

Loads up to 20 tons for each rear axle with a width of 2.5 m, standard reinforced suspension.

Reinforced tandem 20+20 tons

Maximum load on rear tandem of more than 40 tons

Maximum load on rear tandem of more than 40 tons and GWW up to 65 tons thanks to reinforced rear tandem.

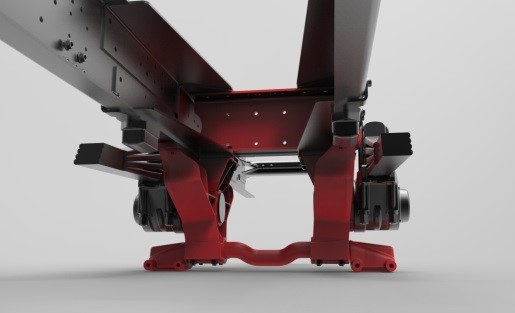

Rear reinforced closed quadrilateral tandem

Completeness and easy configuration

Completeness and easy configuration thanks the availability of a wide range of PTOs (on engine, between clutch and gearbox, on gearbox and transmission).

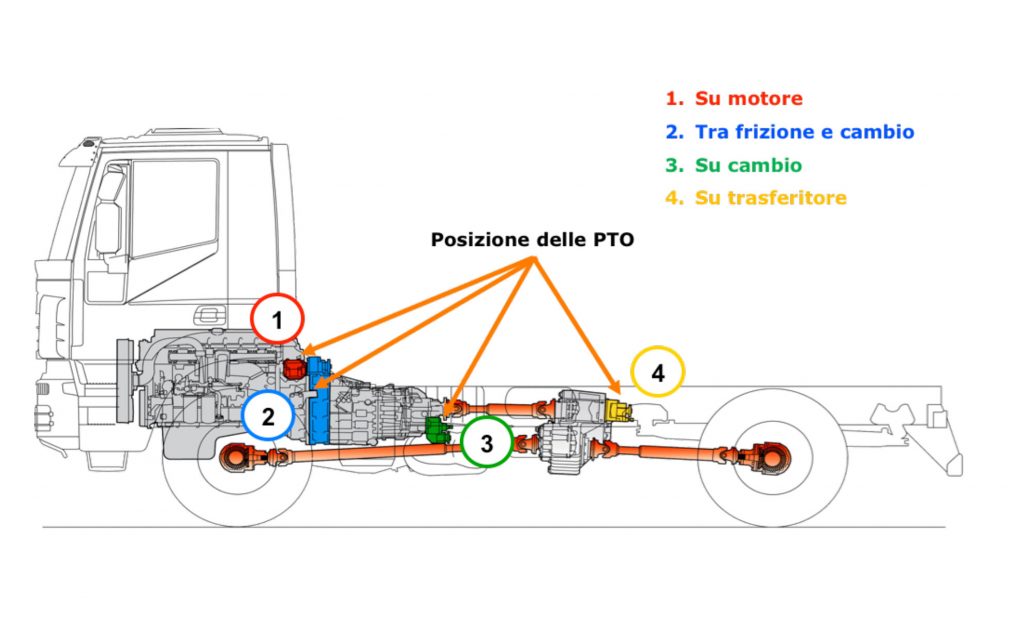

PTO positions

Frame

820 mm wide, unique heavy duty chassis
Two side members in high resistance special steel with a tensile strength of 530 Mpa with large sections to secure easy equipment mounting and most importantly a high level of torsional stiffness (up to 300 kNm) and high stability in the most extreme situations.

"C-section" with flat, parallel elements to ensure easy configuration

Dimensions:

  • 320x70x8 mm 2 axles
  • 320x90x10 mm 3 and 4 axles
  • 320x90x10 (+6) mm in the 4-axle dumper version

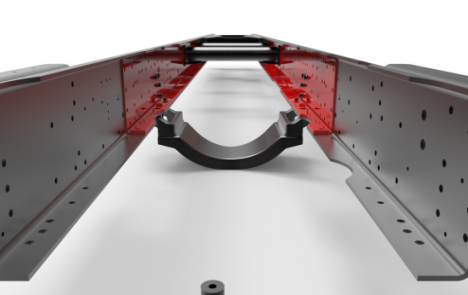

Double internal side member

POWER RING

To increase the robustness and rigidity of the entire structure of the chassis, Astra has patented the power ring: a closed ring structure of the rear suspension, made up of cast iron carriage shoulders and a lower cross member, which improves the redistribution of forces on the tandem.

This enables a load of up to 40 tons on the tandem.

FRONT AND REAR AXLES

Front and drive axles:

  • Axle with load up to 9 tons
  • Drive axle with load up to 9 tons
  • Reinforced drive axle with load up to 10 tons

Rear axles:

  • 13 ton load (2 axles)
  • Tandem with 16+16 load (3 and 4 axles)
  • Reinforced tandem with 20+20 ton load (4 axles only)
Reinforced tandem 20+20 tons

ENGINES

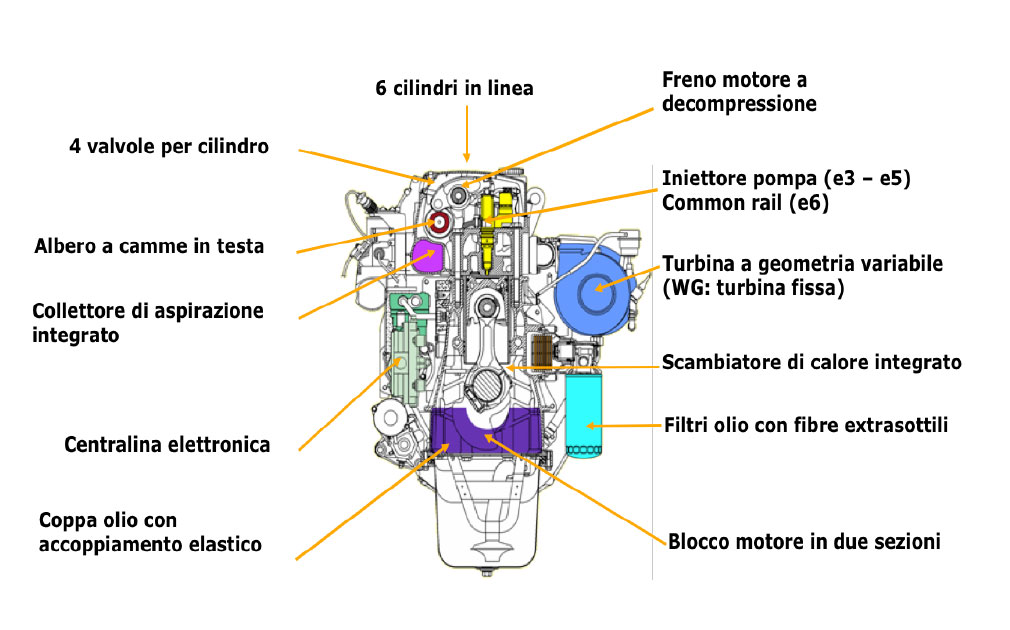

Cursor 13 litre
Euro III, from 380 to 420 hp (WG) and from 440 to 540 hp (VGT)
Euro V, from 410 hp (WG) and from 440 to 560 hp (VGT)
Euro VI, from 450, 510 and 570 hp (eVGT)

Max. power
Up to 570 CV (419 kW) @ 1900 rpm
Max. torque
Up to 2500 Nm from 1000 to 1.600 rpm*
* specific low fuel consumption category

Emissions and consumption
SCR (Selective Catalytic Reduction) technology which minimises fuel emissions and consumption based on the best technological standards.

Radiator with large surface of 0.68m2 thanks to the increase in space provided by the structure

Availability of Iveco Super Engine Brake (SEB)on Euro VI engines, an electronically controlled engine brake throttle which regulates the exhaust manifold and guarantees 50% more braking power compared to previous versions.

BRAKING SYSTEM

Brakes

Duplex front drum 25 kNm
Duplex rear drum:

  • FPT: 24 kNm
  • KESSLER: 30 kNm

Engine brake power

630 hp (463 kW) @ 1900 rpm

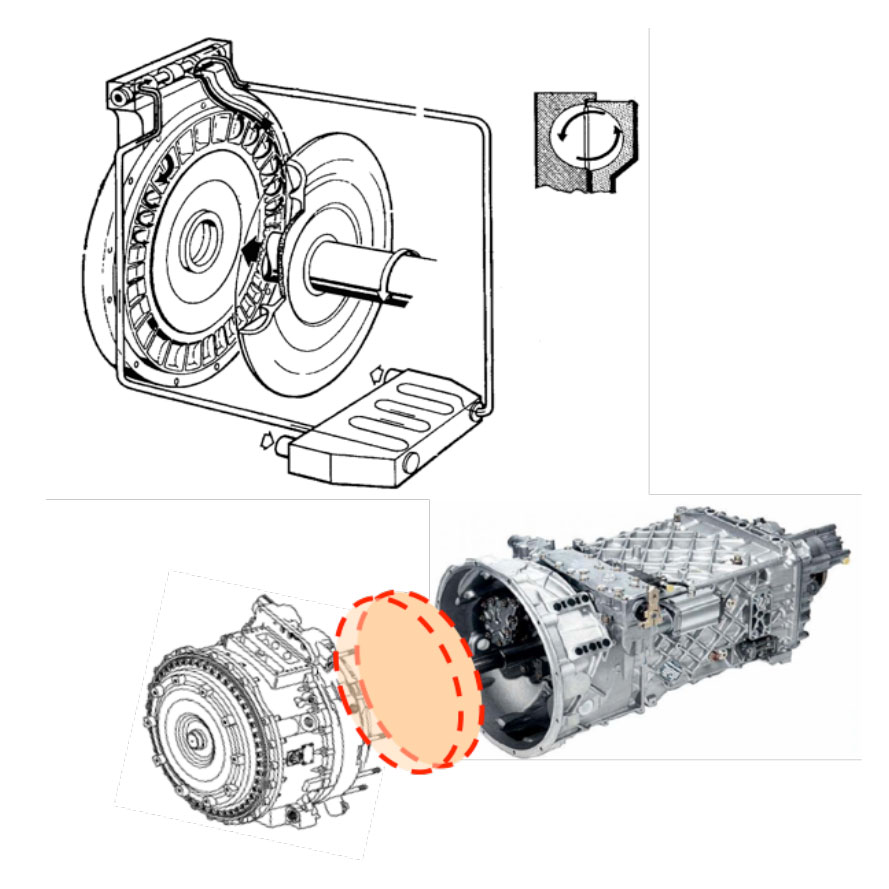

Hydraulic retarders integrated in the gearbox are ideal during periods of continuous and constant slowing down and during heavy load conditions to protect the service brakes from wear.

  • INTARDER, installed on the gearbox output shaft
  • RETARDER, installed on the input shaft
Retarder

GEARBOXES

ZF Ecosplit manual gearbox

ZF Ecosplit manual gearbox, ideal for less demanding quarry and mining missions.

  • Dry single-disc clutch
  • 16 FORWARD and 2 REVERSE gears
  • Gear shift lever with double H layout (high or low range)
  • Splitter pre-selection on lever (slow and fast speeds)
  • Splitter insertion with depression of clutch pedal
  • Servo-shift (gear insertion via pneumatic system)
  • PTO with possible rear installation or between clutch and gearbox
  • Intarder

ZF AsTronic automatic gearbox

ZF AsTronic automatic gearbox, ideal for less demanding quarry and mining missions.

  • 16AS 2630 TO
  • Single disc dry clutch with electro-pneumatic control (clutch pedal eliminated)
  • 16 FORWARD and 2 REVERSE gears
  • 2 operating modes:
  • Automatic
  • Semi-automatic
  • Push-button selector
  • PTO with possible rear installation or between clutch and gearbox
  • Intarder

ALLISON HD 4700 series automatic gearbox

ALLISON HD 4700 series automatic gearboxz, ideal for extremely demanding quarry & mining missions, firefighting e situations requiring superior acceleration or frequent Stop&Go.

  • Converter with lock-up on all gears except 1st. Optimisation of shifting and consumption on demanding terrains.
  • 7 FORWARD and 1 REVERSE gear
  • Limitation of maximum gear that can be inserted (engine protection)
  • Integrated retarder
  • Lever selector
  • Power/eco MODE button

ZF Transmatic hydromechanical gearbo

ZF Transmatic hydromechanical gearbox, multiplies torque at launch, ideal for heavy haulage missions and dangerous towing operations at low speed.

  • Lock-up clutch
  • WSK TORQUE CONVERTER available on versions 6×4, 6×6, 8×6 and 8×8 (OPTIONAL for Euro III vehicles)
  • Integrated retarder
  • Single disc dry clutch with pedal control
  • 16 FORWARD and 2 REVERSE gears
  • Gear shift lever with double H layout (high or low range)
  • Splitter pre-selection on lever (slow and fast speeds)
  • Splitter insertion with depression of clutch pedal
  • Servo-shift (gear insertion via pneumatic system)

CLUTCHES

  • Single disc dry clutch (STD)
  • Ceramic single disc clutch
  • Pedal control with hydraulic circuit
  • Servo clutch on pedal assembly
  • Servo clutch on cylinder (hydromechanical only)

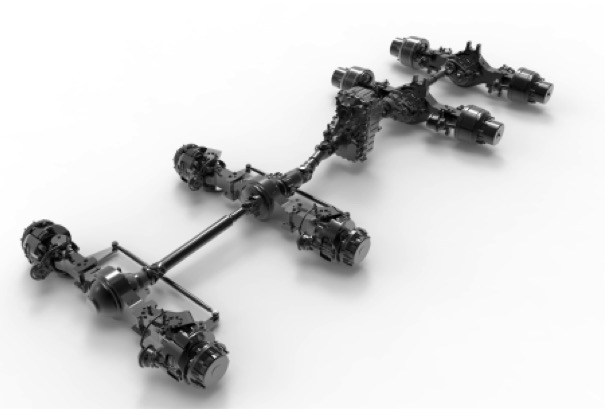

TRACTION AND TRANSFER BOXES

  • 2/3/4 axle with or without all-wheel drive as standard (max. width of 2.5 m).
  • Front approach angles > 25° with high ground clearance depending on the configuration and tyres
  • Transverse and longitudinal differential locks to ensure maximum performance even in heavy off-road conditions.

Availability of high-performance transfer boxes for vehicles travelling with rear-wheel drive and which, when the mission requires, can also engage front-wheel drive:

  • IVECO TC 2200 (up to 22 kNm)
  • ZF-STEYR VG 2000 (up to 27 kNm)
  • ZF-STEYR VG 2700 (up to 30 kNm)

POWER TAKE OFF

Option to install up to 3 PTOs, from those available (on engine, between clutch and gearbox, on gearbox and on transmission).

SUSPENSIONS

FRONT:

Front parabolic springs with hydraulic shock absorbers:

  • 2 – 3 axles with 4 leaves 24×90 mm
  • 4 axles with 3 leaves 26×90 mm

Reinforced suspension system, mandatory for payload higher than 8 ton, with 5 leaves 24x90mm for 2 – 3 axles and 4 leaves 26x90mm for 4 axles.

REAR:

Rear parabolic springs, swiveling on central pin integrated by torque bars and stiffening brackets:

  • 2 axles with 4 leaves 24x90mm+ 1 leaf 50x90mm
  • 3 – 4 axles with 4 leaves 40x100mm

Reinforced suspension system, mandatory with a payload on the rear tandem of 40 ton, with 5 leaves 40x100mm.

On request, 3 and 4 axle vehicles with special equipment with very high center of gravity and for extreme conditions of use can be equipped with conventional springs with 10 leaves 25x100mm.

TYRES

Availability of different types of tyres and treads, different sizes adapted to any type of mission, from well-trodden, to rocky, to soft terrain that requires floatability.

CAB

The inside of the cab is specifically designed and optimised to guarantee excellent ergonomics and comfort, making driving relaxing whilst ensuring high functionality. The instrument panel surrounds the driver and makes controls easy and safe to use even in the most difficult and challenging working conditions.

Tilt of up to 60° for easy access to maintenance areas

Availability of a sleeper cab with single or double bunk.

Optimal visibility thanks to the windows positioned on the lower part of the doors

OTHER HEAVY DUTY FEATURES

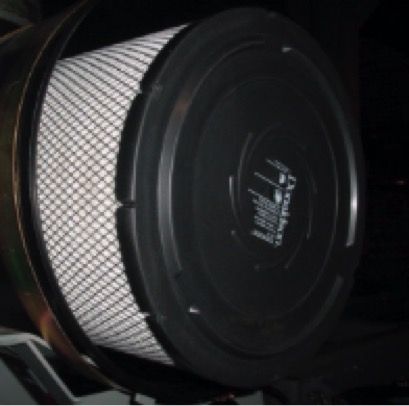

Two stage filter

ideal for more dusty or sandy environments

CE provision (Euro VI only)

Equipment that conforms to the strictest regulations regarding safety on closed work sites, specifically tipping bodies and ROPS&FOPS. cab protective structures.

Additional cooling systems for engine and gearbox
