MADE TO BE SET-UP
MADE TO BE SET-UP
Ideal for any type of customisation and easy to configure thanks to the simplicity and effectiveness of its construction quality.
CUSTOMISATION

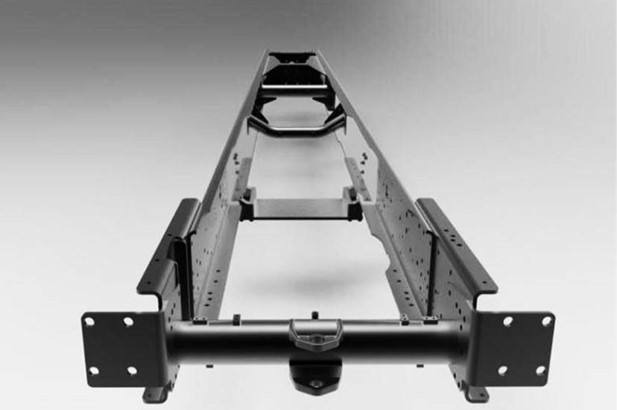

"C-section" frame with flat, parallel elements
Dimensions:
HD9 2-axle 320x70x8 mm
HD9 3 and 4-axle 320x90x10 mm
Width:
820 mm
Material:
Domex 530 (tensile strength= 530 MPa)
Wide choice of wheelbases and overhangs:
Wheelbase up to 6700 mm with 3450 mm overhang for 2 axles
Wheelbase up to 5100 mm with 1900 mm overhang for 3 axles
Wheelbase up to 6960 mm with 2100 mm overhang for 4 axles
Completeness and easy configuration thanks the availability of a wide range of PTOs (on engine, between clutch and gearbox, on gearbox and transmission).
Quick customisation of all types of tyre

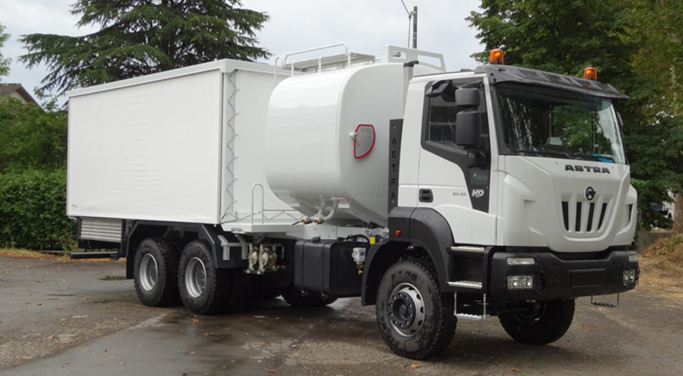

Workshop vehicle

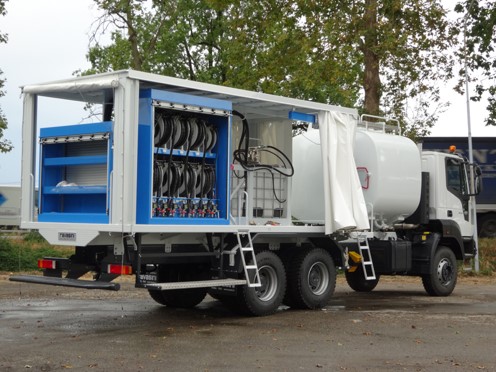

Tyre replacement

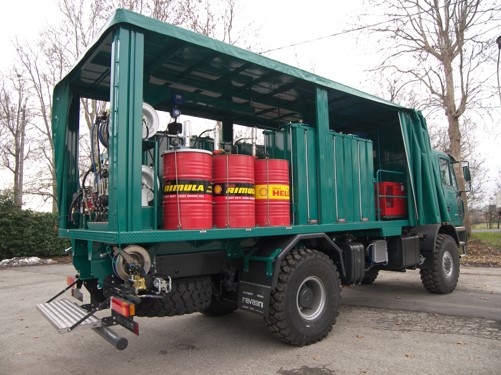

Greasing and topping up service
RELIABILITY

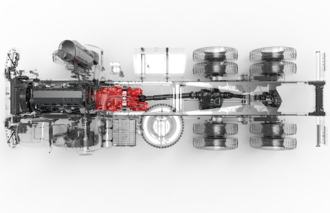

Mechanical simplicity
Simple electronic structure with no control unit on the chassis.
Drum brakes
Lubrication of the rear tandem pin and the front hubs with grease
Brass front suspension bushings
820 mm wide, unique heavy duty chassis
Double side member in highly resistant special steel with a tensile strength of 530 Mpa with large sections:
HD9 2-axle 320x70x8 mm
HD9 3 and 4-axle 320x90x10 mm to ensure a high level of torsional stiffness and high stability even in the most extreme situations. Chassis with a high level of torsional stiffness and maximum resistance to bending of the side member in the central section up to 202 Km.
