TANKS UP TO 40 MC

TANKS UP TO 40 MC

Simple structure, robust and versatile to be easily configured with different tank solutions up to 40 mc as well as suction pumps and equipment.

CUSTOMISATION

"C-section" chassis with flat, parallel elements
Section dimensions:
HD9 and HHD9 3-axle and HD9 4-axle 320x90x10 mm
HD9 and HHD9 4-axle 320x90x10 +6 mm
Width:
820 mm
Material:
Domex 530 (tensile strength = 530 MPa)

Wide choice of wheelbases and overhangs:
wheelbase up to 5100 mm with 1900 mm overhang for 3 axles
wheelbase up to 6960 mm with 2100 mm overhang for 4 axles

Completeness and easy configuration thanks to the wide range of PTOs (on engine, between clutch and gearbox, on gearbox and transmission).

Easy customisation of all types of tyre

Tanks of a range of volumes.

Different types of sprinkler equipment and front and rear loads.

Equipment for spraying via cannons.

ROBUSTNESS

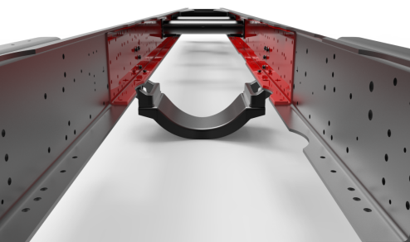

820 mm wide, unique heavy duty chassis Two side members in high resistace special steel with a tensile strength of 530 Mpa with large sections:
HD9 and HHD9 3-axle and HD9 4-axle 320x90x10 mm
HD9 and HHD9 4-axle 320x90x10 +6 mm

to ensure a high level of torsional stiffness and high stability even in the most extreme situations. Chassis torsional stiffness: up to 300 kNm

Loads up to 11 tons thanks to reinforced front drive axles and axles for the most arduous off-road use (routes with slopes or heavy loads concentrated on the front of the vehicle).

Loads up to 21.5 tons for each rear axle with standard width or maximum width of 2.9 m, standard reinforced suspension.

Maximum load on rear tandem of up to 40 tons and GVW up to 65 tons thanks to a reinforced rear tandem on both the standard HD9 version (2.5 m) and the HHD9 version (2.9 m).

MANOEUVRABILITY, TRACTION AND DRIVING STABILITY

3 and 4-axle HD9 with or without all-wheel drive as standard and max. width of 2.5 m.

3 and 4 -axle HHD9 with all-wheel drive and max. width of 2.9m.
