Heavy Construction
Crane and platforms
UP TO 10 TONS ON THE FRONT OF THE VEHICLE
UP TO 10 TONS ON THE FRONT OF THE VEHICLE
Compact size to optimise performance and manoeuvrability: ASTRA vehicles offer stability thanks to optimal distribution of weight and load thanks to the reinforced rear axles and suspension system on the front of the vehicle.
STABILITY

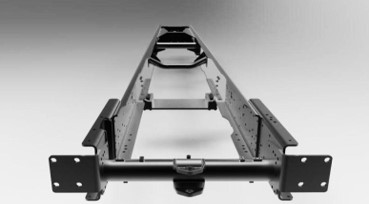

820 mm wide, unique heavy duty chassis. Two side members in high resistance special steel (530 Mpa) with large sections. 3 and 4-axle HD9: 320x90x10 mm to ensure a high level of torsional stiffness and high stability even in the most extreme situations. Chassis with a high level of torsional stiffness and maximum resistance to bending of the side member in the central section up to 202 Km.
ROBUSTNESS
Loads up to 10 tons thanks to reinforced front drive axles and axles for the most arduous on and off-road use (routes with slopes or heavy loads concentrated on the front of the vehicle).
CUSTOMISATION
"C-section" chassis with flat, parallel elements Dimensions: HD9 2-axle 320x70x8 mm HD9 3 and 4-axle 320x90x10 mm
Width:
820 mm
Material:
Domex 530 (tensile strength= 530 MPa)
Wide range of wheelbases and overhangs available for fitting various configurations behind the cab:
wheelbase up to 5100 mm with 1900 mm overhang for 3 axles
wheelbase up to 6960 mm with 2100 mm overhang for 4 axles
Completeness and easy configuration thanks the availability of a wide range of PTOs (on engine, between clutch and gearbox, on gearbox and transmission).
