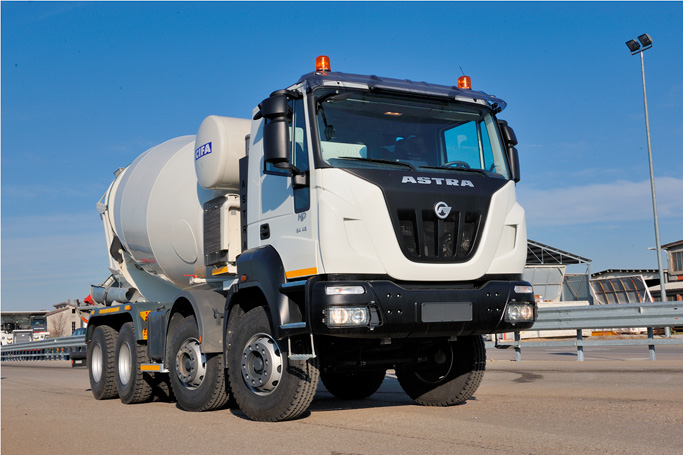

Cement mixer, concrete / mixer pump

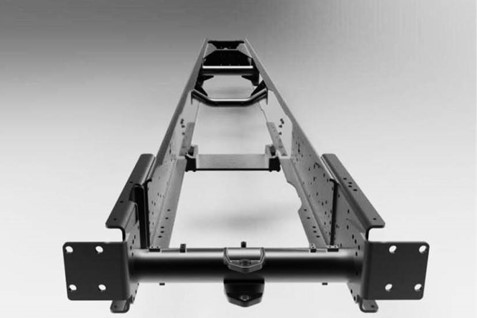

820 mm wide, unique heavy duty chassis. Two straight and parallel side members in high resistance special steel with a tensile strength of 530 Mpa with large sections: 3 and 4-axle HD9 320x90x10 4-axle HHD9 and unique versions with internal reinforcement, 6 mm thick, to ensure a high level of torsional stiffness and high stability even in the most extreme situations. Chassis with a high level of torsional stiffness and maximum resistance to bending of the longitudinal side member in the central section up to 300 kNm.

"C-section" chassis with flat, parallel elements Dimensions: HD9 3 and 4-axle 320x90x10 mm Width: 820 mm Material: Domex 530 (tensile strength= 530 MPa)

Wide choice of PTO: on engine, between clutch and gearbox, on gearbox and transmission."

Easy customisation of all types of tyre

Able to support heavy loads of up to 9 tons thanks to reinforced front drive axles and axles for the most arduous off-road use (routes with slopes or heavy loads concentrated on the front of the vehicle).

Loads up to 16 tons for rear axles and above for special versions with standard or maximum width up to 2.9 m, with standard reinforced suspension.

Maximum load of up to 40 tons and GVW beyond 60 tons thanks to a reinforced rear tandem on both the standard HD9 version (2.5 m) and the HHD9 version (2.9 m). Closed ring structure of the rear suspension (“power ring”), made up of cast iron carriage shoulders and a lower cross member (Astra patented).
